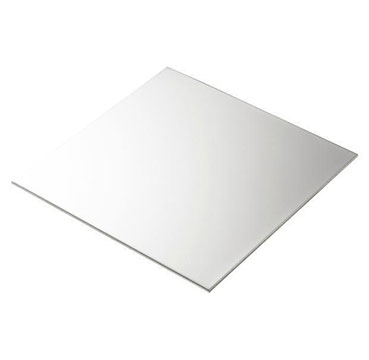

SS 904L Sheets
SS 904L Sheets are flat products that are used for fabrication and constructing tanks, vessels, boilers and allied profiles. SS 904l sheet are used as starting material for producing varieties of containment parts. These 904l sheets are hot rolled, cold rolled followed by surface finishing.
Anand Steels is a stockist and supplier of SS 904L sheets in a wide range of thickness, widths and lengths. These 904l sheets come in coil form for customized cutting length. SS 904L sheets are manufactured to ASTM A240/A240M material specifications. SS 904l sheets are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Sheets, see below details.
- Gauge Thickness: 0.5mm to 5mm
- Size: up to 2500mm width and length up to 12000mm and coil form.
- Construction: Cold Rolled & Hot Rolled
- Material Specifications: ASTM / ASME A240/A240M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L Sheets
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L Sheets
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L Sheets
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
