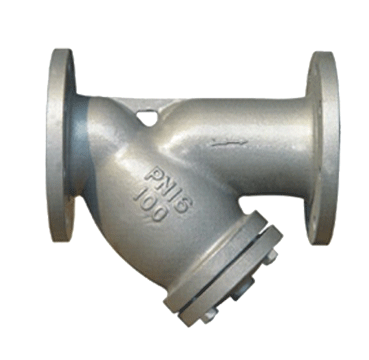

SS 904L Y Type Strainers are used for filtering out unwanted and hazardous particles from the pipeline and thus protecting the pumps, valves, meters and similar mechanical equipment. These Y type strainers can be manufactured using forged, cast or fabricated material and specifications.

Anand Steels manufactures and supplies SS 904L strainers with flanged, butt-weld, socket-weld and screwed ends. SS 904L y type strainers are manufactured to ASTM A182 F904L forged material; cast 904l material and ASTM A240/A240M Type 904L fabricated material specifications. These 904L stainless steel y-type strainers are designed and manufactured to ANSI/ASME B16.34, API, BS, ISO, DIN and EN product standards. SS 904l y type strainers are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.

For more information on SS 904L Y Type Strainers, see below details.

• Sizes: 3/8” to 24” NPS
• Pressure Ratings: Class 75/150/300/400/600/900/1500/2500 and others
• Ends: Butt-Weld, Socket-Weld, Screwed, and Flanged End.
• Construction: Cast, Forged and Fabricated
• Dimensions & Tolerances;: ASME / ANSI, API, BS, EN, ISO, GOST and DIN Standards
• Material Specifications: ASTM A182/A182M F904L, ASTM A240/A240M Type 904L, Cast 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
• Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA

Chemical Requirements for SS 904L Y Type Strainers

Mechanical Requirements for SS 904L Y Type Strainers

Applications for SS 904L Y Type Strainers

• Process equipment in chemical industry
• Petrochemical industry
• Bleaching equipment in the pulp and paper industry
• Flue gas cleaning
• Desalination
• Seawater handling
• Hydrometallurgy
• Food and beverage
• Pharmaceuticals
• Heat exchangers
